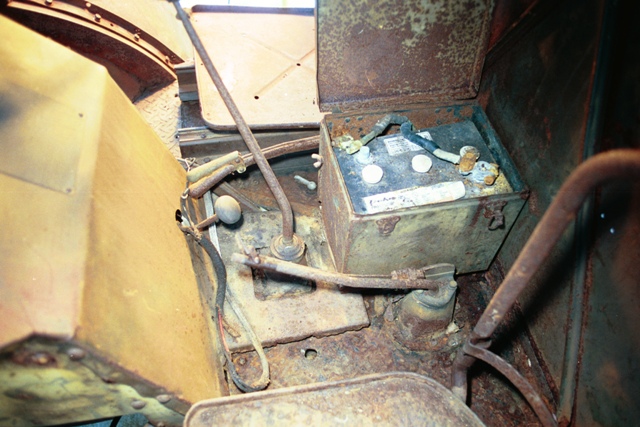

Box in place note how it sits over the transmission cover

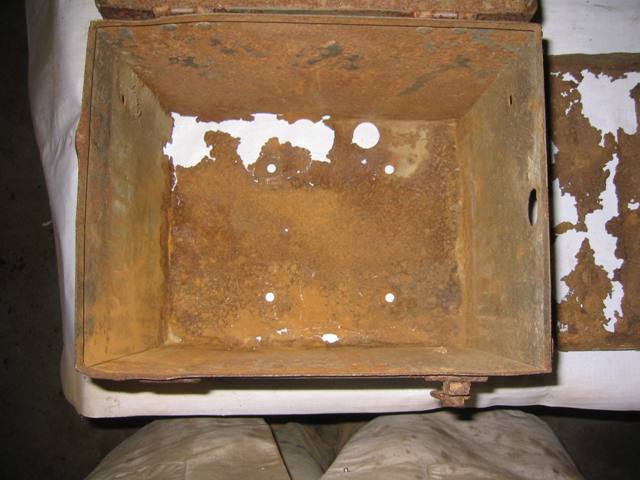

Looking down into box hinge edge is toward drivers seat latch toward gear shift

Latch side

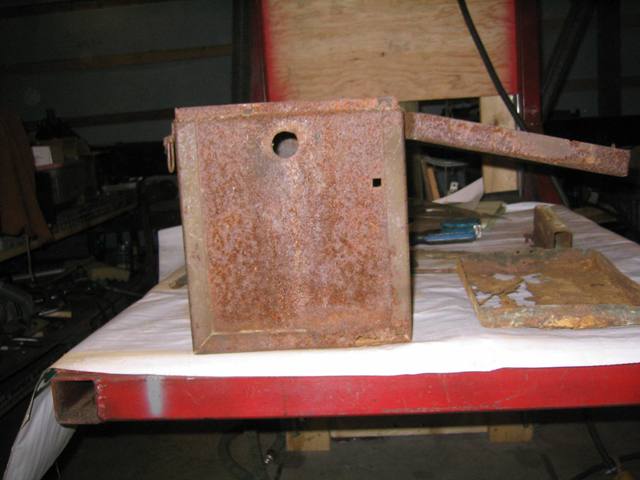

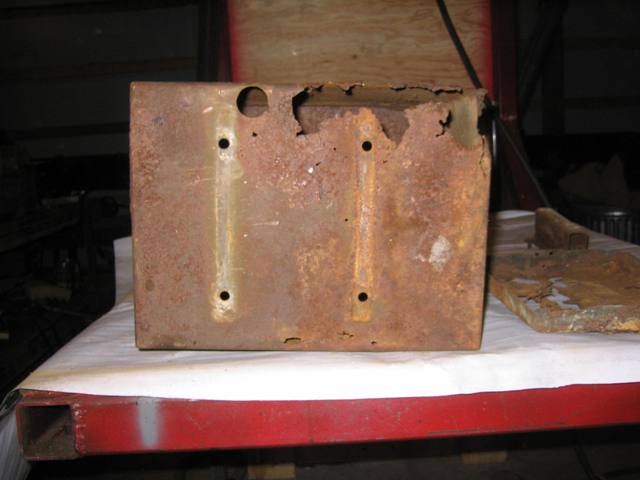

Bottom of box note the hole which is for the battery cable

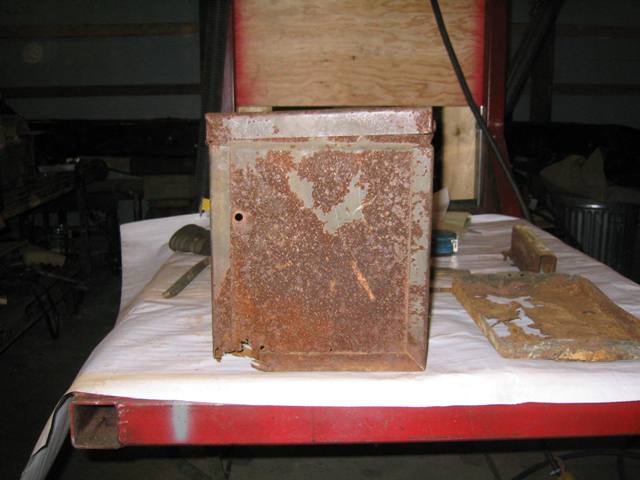

Front end of the box (toward the engine cover)

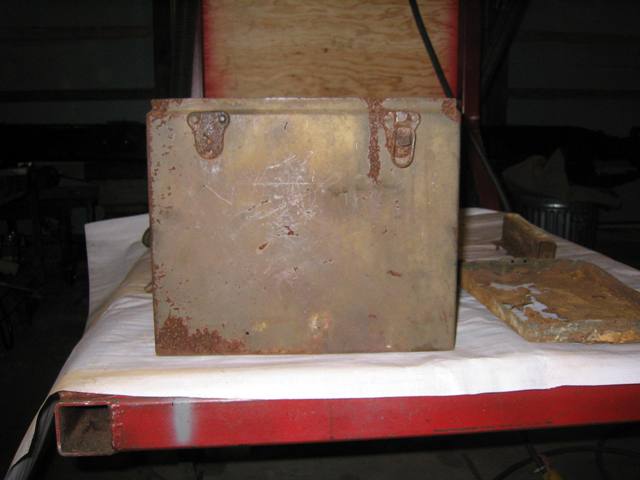

Back end of box (toward the cab back)

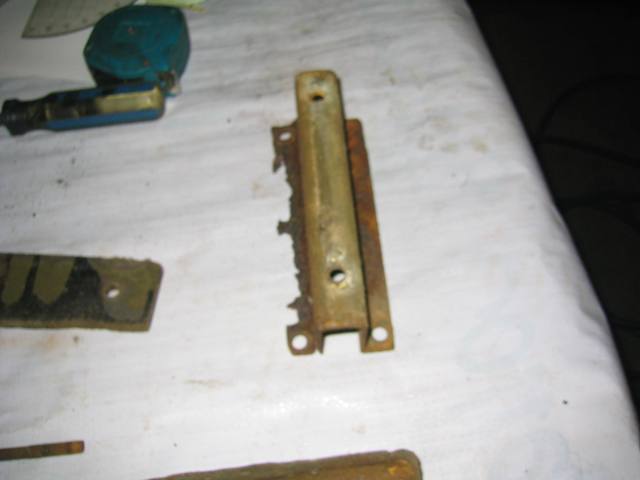

One of two mounting supports

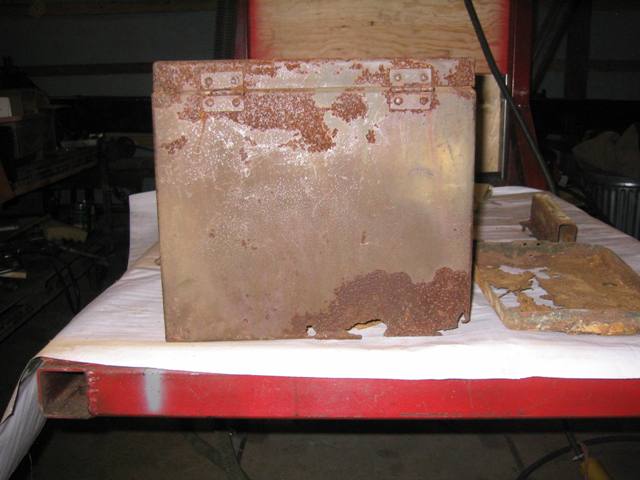

Hinge side of the box

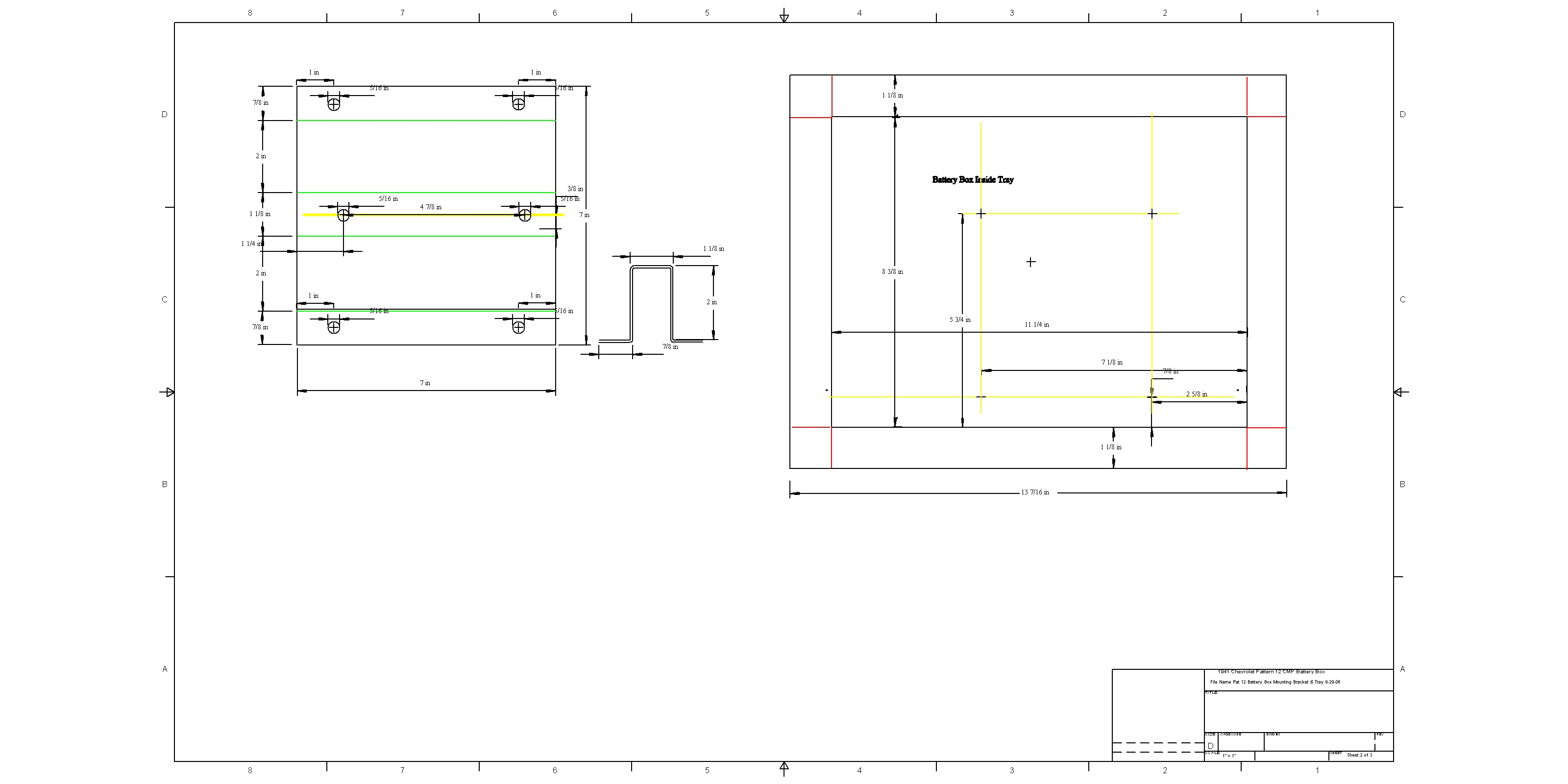

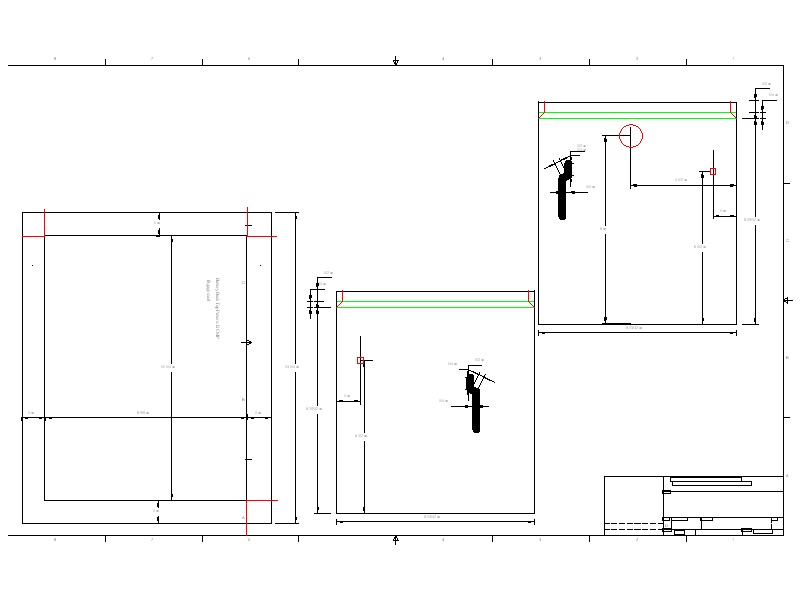

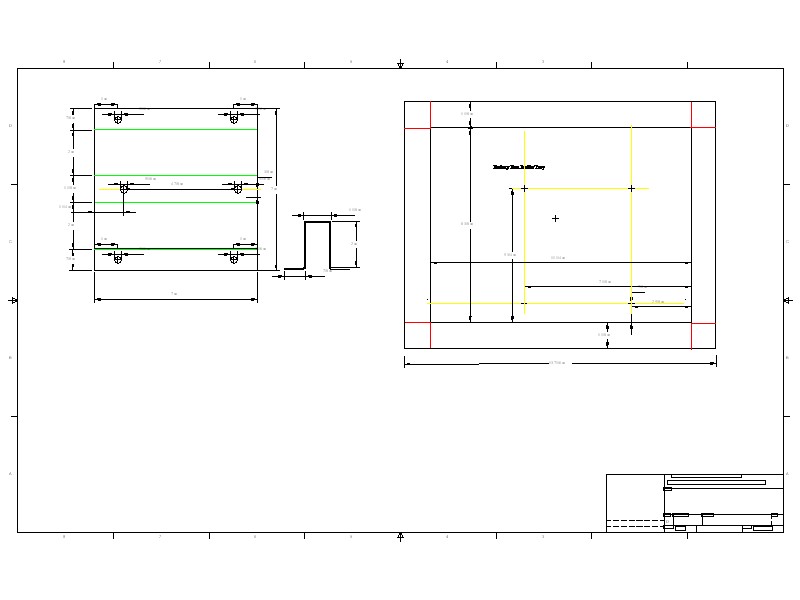

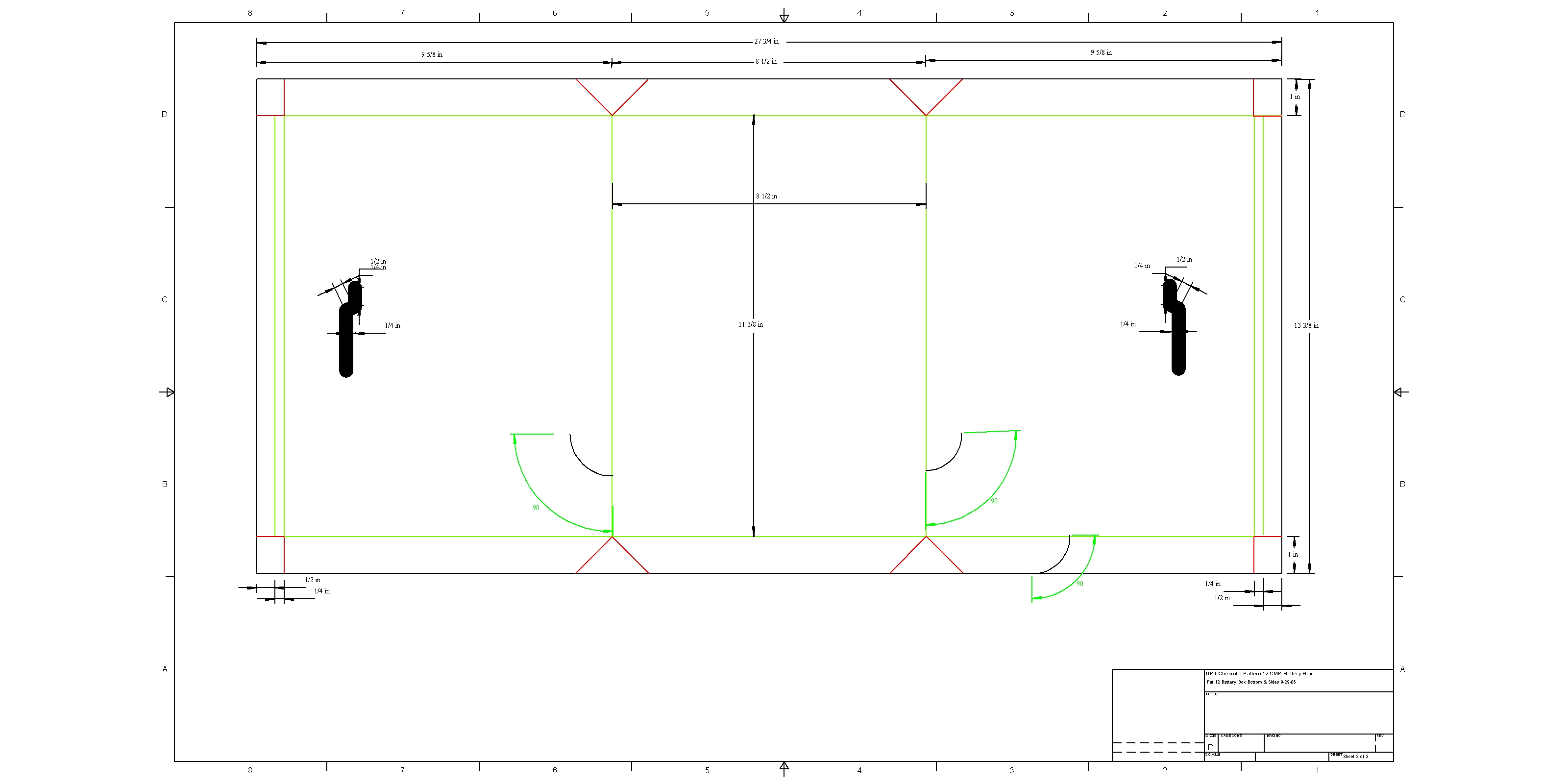

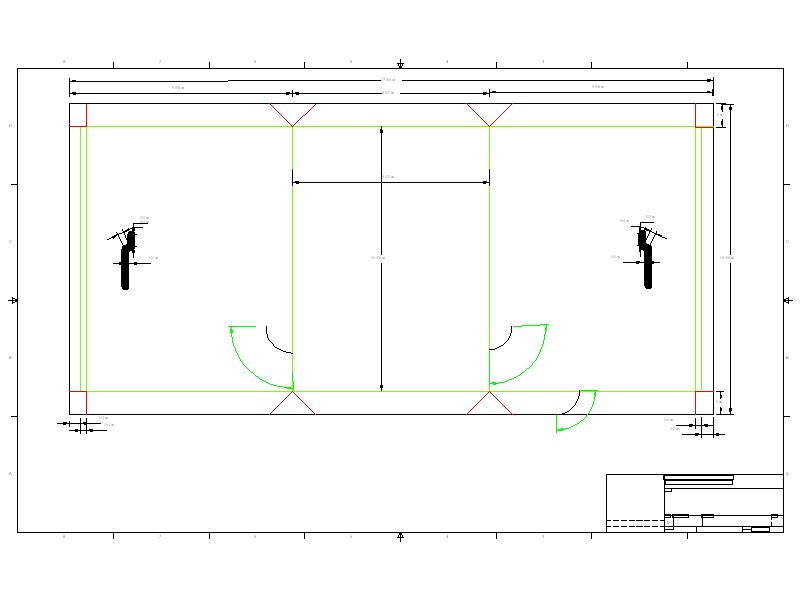

Sides and Bottom of Box --- Link to Higher resolution printable drawing--- Link to DWG cad file

Sides and Bottom of Box --- Link to Higher resolution printable drawing--- Link to DWG cad file

Sides and Bottom of Box --- Link to Higher resolution printable drawing--- Link to DWG cad file

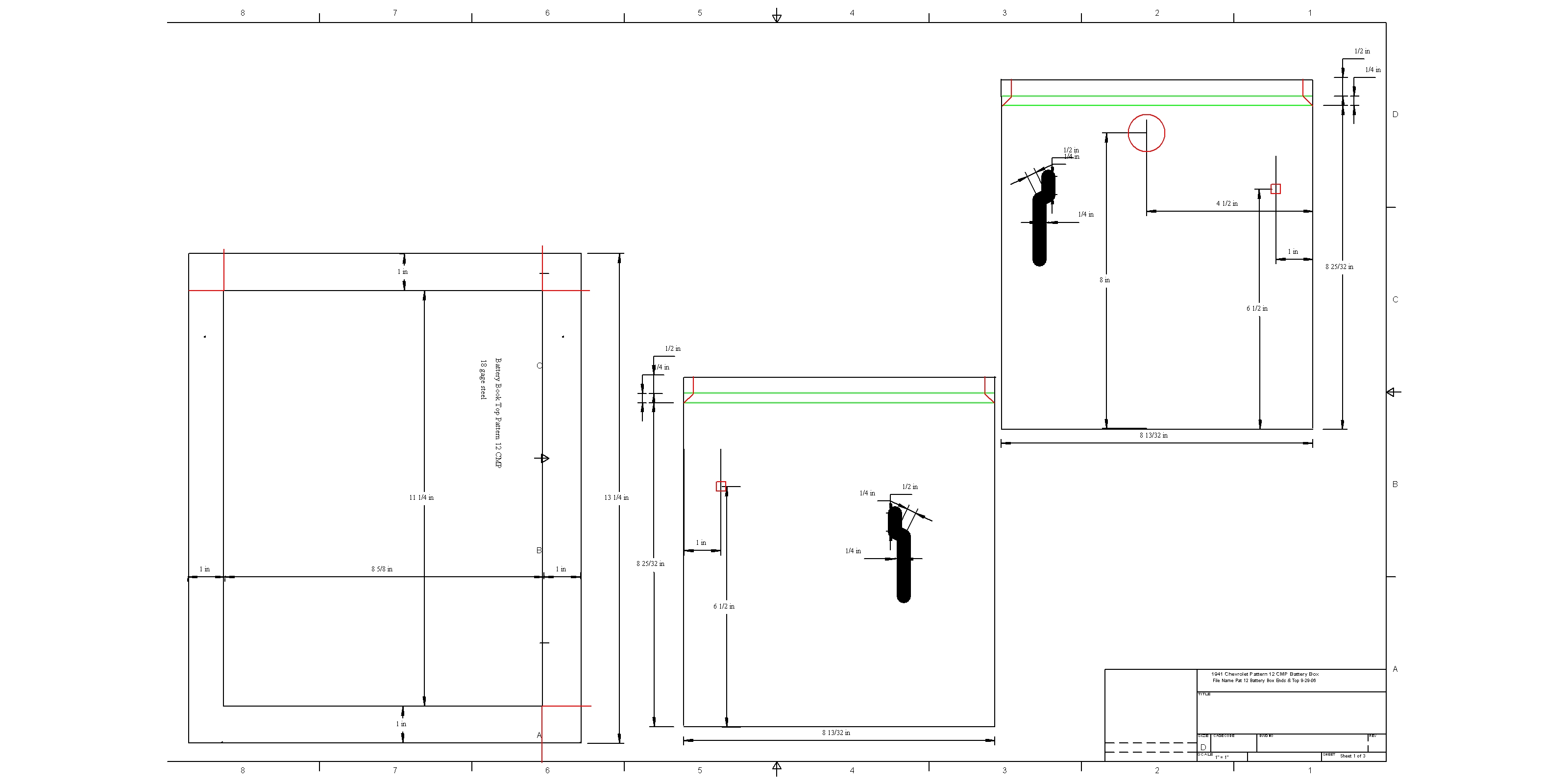

These are the drawings for one of two BATTERY BOXES please note that the two boxes are slightly different in dimensions. Before using these drawings to fabricate a Battery Box. PLEASE make a card board version to be sure that it will fit the battery that you plan to use.

Best way to print these files seems to be to save them to your desktop and then open them with your photo program in that way you can set the paper size. Printing directly from the browser does not seem to work with all printers for some reason.
